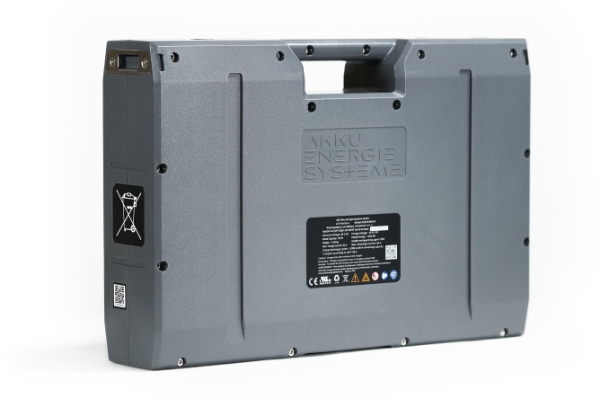

AES SUPERPACK 2.0

Robust. Reliable. Powerful.

When pure functionality matters, the SuperPack 2.0 is your go-to solution. As the true workhorse among AES batteries, it is engineered for maximum performance and reliability—no frills, no compromises. Its minimalistic design reflects its uncompromising focus: robust, efficient, and purpose-built. Here, it’s not about looks—it’s about delivering raw power for demanding applications.

Whether in heavy-duty cargo operations, as an auxiliary power supply for service vehicles, in the mobile AES power box, or as a storage unit for the EnergyHub and CES—SuperPack 2.0 delivers dependable energy wherever it’s needed. Proven LiFePO4 technology ensures top-tier safety and long lifespan, even under tough conditions.

Flexible capacity scaling is possible by connecting 2 to 16 units in parallel—ranging from 2.88 kWh to a powerful 23 kWh. This keeps you fully independent and operational, even in off-grid scenarios. SuperPack 2.0 is made for professionals who need maximum energy with minimal complexity.

Key Features:

  • Compatible with AES PowerBox, CES, and EnergyHub
  • Very high continuous discharge current – 60 A
  • Suitable for larger electric cargo vehicles with nominal motor power of 3 kW
  • Robust and safe (no thermal runaway)
  • Extremely reliable with short charging times possible
  • Easy to service: individual cells can be replaced
  • Compatible with AES fleet management and CAN bus systems
  • Custom color options available upon request
  • Long lifespan: proven minimum of 3,000 charge cycles (approx. 10 years of daily use)
  • CE and UL certified

Environmentally friendly:

  • Cobalt-Free: Sustainable and safer battery chemistry
  • Durable & Recyclable: Made from robust, recyclable plastic
  • Up to 4x Longer Lifespan: Compared to conventional battery technologies
  • Lower CO₂ Emissions: Supports your environmental goals

Technical features:

  • Nominal Voltage: 48 V DC
  • Capacity: 30 Ah
  • Energy: 1440 Wh
  • Cell Configuration: 15S / 2P
  • Cell Type: 3.2 V / 15 Ah LiFePO4
  • Charge/Discharge Cycles:
    2500 cycles with 90% remaining capacity
    3000 cycles with 80% remaining capacity
  • Charging Current: 22 A continuous
  • Peak Charging Current:
    23 A – 28 A for 15 s
    29 A – 40 A for 5 s
    41 A – 43 A for 3 s
  • Discharge Current: 60 A continuous:
  • Peak Discharge Current:
    61 A – 90 A for 15 s
    91 A – 100 A for 5 s
    101 A – 105 A for 3 s
  • BMS: Smart BMS with CAN bus communication
  • Charge Status Indicator: LED battery status display
  • Charging Temperature Range: 0 °C to +50 °C
  • Discharging Temperature Range: –20 °C to +60 °C
  • Automatic Shutdown: At a core temperature of +60 °C
  • Dimensions (mm): L 400 × W 268 × H 89
  • Weight: Approx. 12 kg
  • Housing: ABS plastic
  • IP Protection Rating: IP65
  • Parallel Connection: Hot-swap capable parallel connection of 2 to 16 SuperPack 2.0 units possible
